Brief Description:

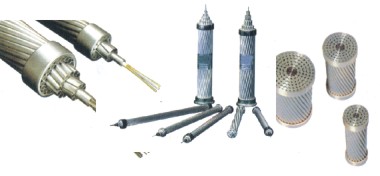

ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium (E.C. GRADE). ACSR CONDUCTOR is available in a wide range of steel varying from as low as 6% to as high as 40 %. The higher strength ACSR CONDUCTORS are used for river crossings, overhead ground wires, installations involving extra long spans etc.. Against any given resistance of conductor, ACSR CONDUCTORS may be manufactured for having a wide range of tensile strength as per requirement. The principal advantage of these conductors are high tensile strength and light weight with longer spans as well as with lesser supports. Due to the greater diameter of ACSR CONDUCTORS a much higher corona limit can be obtained causing big advantages on high as well as extra high voltage overhead lines.

ABC cable
1.low/medium/high voltage
2.AAC/ACSR conductor
3.best price and reliable quality
Service Drop:Duplex/Triplex/Quadruplex

Applications:
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR CONDUTOR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. ACSR CONDUTORS are used extensively for overhead ground wires, river crossings etc. These ACSR CONDUTORS are available with us in various types for meeting the exact requirements of the clients.

Certificate:ISO 9001:1400    ISO 8001:1404

Standard:IEC61089, BS215 part2, ASTM B232, DIN48144, BS EN50142, JIS C3110, NF C34-114,GB/T 149-1408

Features :
a.High tensile strength
b.Long life
c.Light in weight
d.Suitable for high as well as extra high overhead voltage lines

Construction:
Aluminum alloy 1350-H19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B,or C galvanizing; "aluminized" aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

Diameter-Extended ACSR
Diameter-Extended ACSR ,with specifications of 630-1250mm2,is mainly used for flexible busbar of 500KV electric power substation.The using temprature is 80℃.
It has such a feature as extention of outside diameter by use of supporting aluminium wire to reduce electric field strength of lead surface,prevent corona discharge,and minimized interference to wireless.It can be used in high altitude localities.It is of high strength,anticorrosion,and long service life.Also it can improve connection quality of T joint.

Package:In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.Welcome your request for any quotations!
