Quick Details
Place of Origin:Zhejiang, China (Mainland)
Model Number:YH
Material:pure copper or copper clad alumnum
Sheath color:black
Conductor:pure copper / copper clad aluminum
Insulation:rubber
Cross Sectional Area:50mm2
Voltage:200V
Standard:IEC 245-81

Specifications
Stranded copper conductor & Natural Rubber Insulation
Standard: IEC245-81
High quality & Competitive price

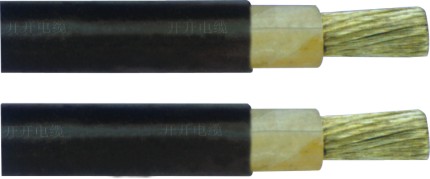

Rubber Insulated Welding Cabe
Application:The products are suitable for welding machine as the second flank wiring cable while connecting the welding pliers,at rated voltage up to and including 220V or peak value of pluse D.C up to and including 400V.

Packaging & Delivery
Packing details:100m/coil(also can be packed as your requirement)
Leading time:within 15days (It depends on your order quantity)

Feature:
1. Conductor : Copper
2. Applicable Standard : IEC 245-81, GB5013.6-1997
3. Operating temperature: Max. Rated conductor operating temperature is 65oC
4. Insulated Sheath: Chloroprene rubber or other equivalent synthetic rubber elastomer sheath welding cable
5. Heat-resistant, oil-proof.

Construction:
1.copper conductor
2.separating layers
3.rubber sheath
