PRODUCTS > Power Cable > Flame-retardant XLPE insulated fire-resistant power cable
Name
XLPE insulated PVC sheathed steel tape armoured power cable
Specifications
Copper conductor/XLPE insulation/PVC bedding/Steel tape armour/PVC sheath
1 /2 /3 /4 /5 /3+1 /3+2 /4+1 cores
0.6/1KV
ISO9001
|
| Nominal cross section area of conductor(mm2) |
Insulation Thickness(mm) |
Inner Sheath Thickness(mm) |
Steel Tape Thickneness(mm) |
Sheath Thickness(mm) |
Approximate Overall Diameter(mm) |
| 4*4 |
0.7 |
1.0 |
2*0.3 |
1.5 |
16 |
| 4*6 |
0.7 |
1.0 |
2*0.3 |
1.5 |
17 |
| 4*10 |
0.7 |
1.0 |
2*0.3 |
2.0 |
20 |
| 4*16 |
0.7 |
1.0 |
2*0.5 |
2.0 |
23 |
| 4*25 |
0.9 |
1.0 |
2*0.5 |
2.0 |
27 |
| 4*35 |
0.9 |
1.0 |
2*0.5 |
2.0 |
29 |
| 4*50 |
1.0 |
1.0 |
2*0.5 |
2.0 |
33 |
| 4*70 |
1.1 |
1.2 |
2*0.5 |
2.5 |
38 |
| 4*95 |
1.1 |
1.2 |
2*0.5 |
2.5 |
42 |
| 4*120 |
1.2 |
1.4 |
2*0.5 |
3.0 |
47 |
| 4*150 |
1.4 |
1.4 |
2*0.5 |
3.0 |
52 |
| 4*185 |
1.6 |
1.6 |
2*0.5 |
3.0 |
56 |
| 4*240 |
1.7 |
1.6 |
2*0.5 |
3.0 |
62 |
| 4*300 |
1.8 |
1.7 |
2*0.5 |
3.1 |
64 |
|

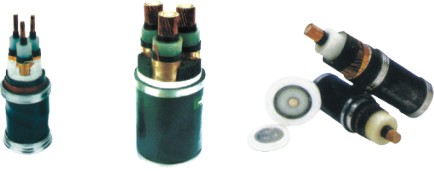

Construction:
1.copper conductor
2.xlpe insulation
3.filler
4.tape
5.pvc inner sheath
6.steel tape armoured
7.pvc outer sheath
Charateristic:able to bear pulling force and pressure
|
